SESAME Face
Unlock with a Smile! Introducing SESAME Face – Perfect for the Whole Family 😃🎉The highly popular SESAME Touch has evolved into something even more convenient and smarter with the addition of facial recognition and palm vein authentication 🕺✨
Supporting a wide range of users from ages 3 to over 80, it boasts an ultra-high accuracy with a false recognition rate of less than 0.0001%.
This is the new standard for next-generation authentication devices 🆕
Of course, all the existing SESAME Touch features remain.
In addition to support for FeliCa (Suica, PASMO, etc.) and MIFARE cards, it’s equipped with a large fingerprint reader.
Even children or elderly family members who don’t carry smartphones can unlock SESAME using their face, fingerprint, or palm – whatever they prefer 🔓✨
Now every family member can enjoy a more comfortable and secure SESAME experience.
Enhanced Software and Sophisticated Hardware：
・Equipped with SesameOS 3
※Please note: Not compatible with first-generation SESAME, SESAME mini (running SesameOS 1), SESAME 3/4, Cycle 1, or Bot 1.
・Radar detection range：Adjustable from 40 cm to 400 cm. The radar wakes the system from sleep within this range, allowing you to conserve battery power even in high-traffic areas.
・Facial recognition：Stores up to 100 faces. Recognition works within 35–90 cm from SESAME Face. Recognition area height varies depending on distance.
・Palm vein authentication：Stores up to 100 palm vein patterns. Works within 8–25 cm from SESAME Face. Recognition area height varies depending on distance.
・Card reader：Compatible with FeliCa (Suica, PASMO, etc.) and MIFARE cards. Can register up to 1,000 cards. NFC tags can also be used as cards.
・Fingerprint reader：250% larger than iPhone’s reader, offering faster recognition. Can register up to 100 fingerprints.
• Sesame Connection: One Face can link with 2 Sesame units
• Water and Dust Resistance: IP65 rated
• Installation Method: 3M tape

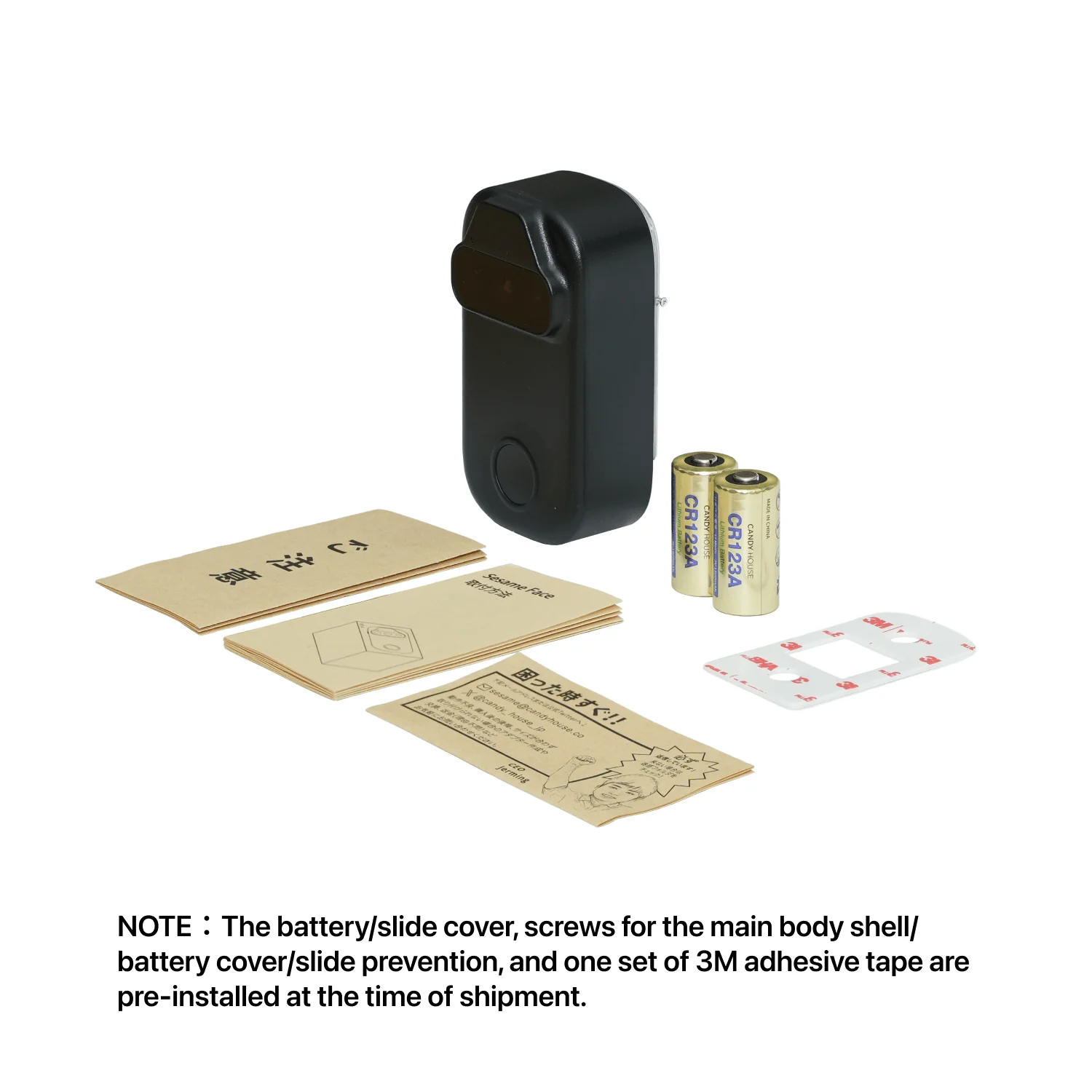

Included Accessories:
• 3M tape for SESAME Face (2 sets)
• Battery cover (1 piece)
• Slide cover (1 piece)
• High-performance, high-capacity 3.0V 1800mAh CR123A batteries (2 pieces, 1 set)
• Screws for main body shell (2 pieces, PM type 1.6*5.0mm)
• Screws for battery cover (2 pieces, PM type 2.0*9.0mm)
• Slide Cover Slide Prevention Screw (1 piece, M 1.4*4mm)
• User manual (1 book), Warranty card (1 book)
How to Set Up🪛🛠️
Authentication distance👀🟣
⚠️
The small screw slightly protruding from the upper left on the back of the main unit is the "Slide Cover Slide Prevention Screw".
It is intentionally installed slightly loosely to make removal easier, but please rest assured that this does not affect the product's specifications or performance.
⚠️
・If foot traffic exceeds 10 times per day, please set the radar detection range to a shorter distance to conserve power. This ensures up to 2 years of usage.
・If foot traffic is 10 times or fewer per day, setting the detection range to the maximum provides a very comfortable user experience.
・Two CR123A batteries (1800mAh × 2 = 3600mAh) provide enough capacity for approximately 3,650 uses of face recognition and palm vein authentication. When the purple LED lights up, it indicates a low voltage of 4.5V, and both face and palm vein authentication will stop functioning.
・Even if the radar detection range is set to the minimum, pressing the "Unlock Button/Side Button" while locked will immediately activate face or palm vein recognition. This allows for an excellent balance between ultra-low power consumption and superior user experience.
・Regardless of the detection range, the radar itself is highly energy-efficient (30µA). In contrast, face and palm vein recognition consume a large amount of power (1,000,000µA).
