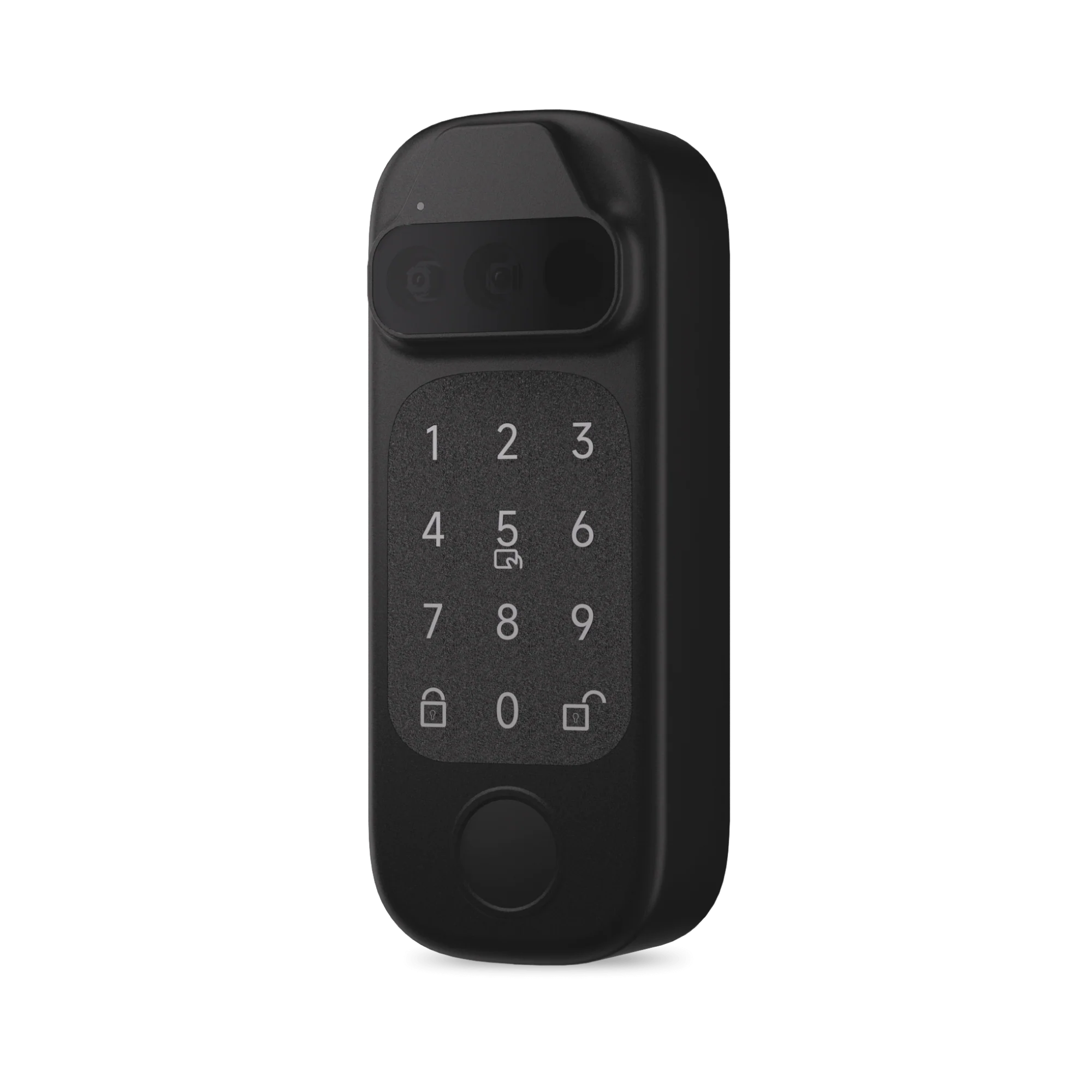

SESAME Face 2 Pro
Face, palm vein, fingerprint, card, and PIN — all in one. A powerful new release is here! 🌋💨
Our card reader just got even more convenient.
Introducing the upgraded version of the popular Sesame Touch Pro, now with face recognition and palm vein authentication! 😃🖐️🔢
Cards? Yes. Fingerprints? Yes. PIN codes? Absolutely.
Even if you don’t have your smartphone or forget your card, no worries — you’re still covered.
Each family member can choose the authentication method that suits them best.
Seamlessly combine multiple authentication methods and make coming home feel even better, every day.
Enhanced Software and Sophisticated Hardware：
・Equipped with SesameOS 3
※Please note: Not compatible with first-generation SESAME, SESAME mini (running SesameOS 1), SESAME 3/4, Cycle 1, or Bot 1.。
・Radar detection range：Adjustable from 40 cm to 400 cm. The radar wakes the system from sleep within this range, allowing you to conserve battery power even in high-traffic areas.
・Facial recognition：Stores up to 100 faces. Recognition works within 35–90 cm from SESAME Face 2 Pro. Recognition area height varies depending on distance.
・Palm vein authentication：Stores up to 100 palm vein patterns. Works within 8–25 cm from SESAME Face 2 Pro. Recognition area height varies depending on distance.
• PIN Code: Stores 100 different passwords, with a maximum of 16 digits
・Card reader：Compatible with FeliCa (Suica, PASMO, etc.) and MIFARE cards. Can register up to 1,000 cards. NFC tags can also be used as cards.
・Fingerprint reader：250% larger than iPhone’s reader, offering faster recognition. Can register up to 100 fingerprints.
• Sesame Connection: One Face 2 Pro can link with 2 Sesame units
• Water and Dust Resistance: IP65 rated
• Installation Method: 3M tape

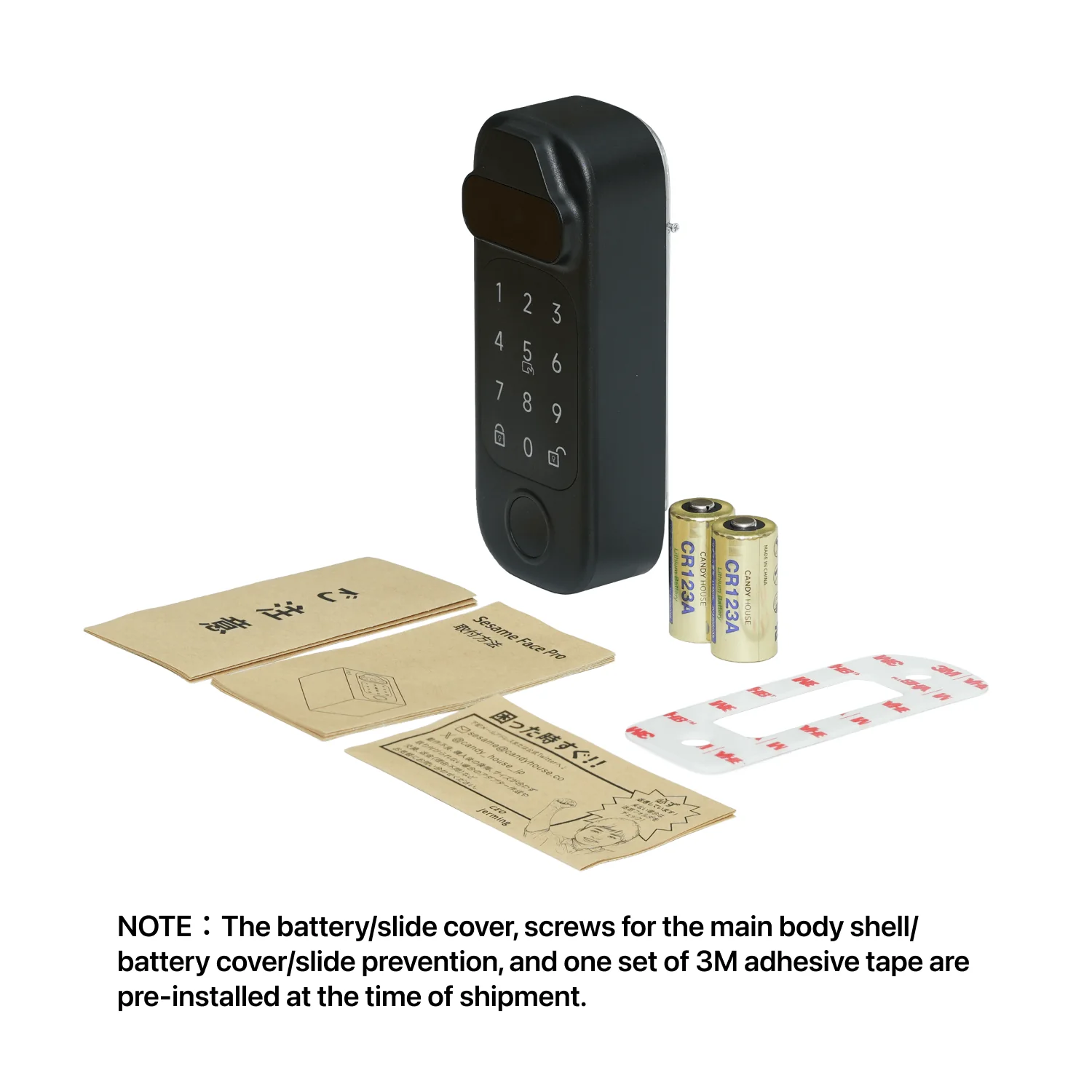

Included Accessories:
• 3M tape for SESAME Face 2 Pro (2 sets)
• Battery cover (1 piece)
• Slide cover (1 piece)
• High-performance, high-capacity 3.0V 1800mAh CR123A batteries (2 pieces, 1 set)
• Screws for main body shell (2 pieces, PM type 1.6*5.0mm)
• Screws for battery cover (2 pieces, PM type 2.0*9.0mm)
• Slide Cover Slide Prevention Screw (1 piece, M 1.4*4mm)
• User manual (1 book), Warranty card (1 book)
How to Set Up🪛🛠️
Authentication distance👀🟣
⚠️
The small screw slightly protruding from the upper left on the back of the main unit is the "Slide Cover Slide Prevention Screw".
It is intentionally installed slightly loosely to make removal easier, but please rest assured that this does not affect the product's specifications or performance.
⚠️
・If foot traffic exceeds 10 times per day, please set the radar detection range to a shorter distance to conserve power. This ensures up to 2 years of usage.
・If foot traffic is 10 times or fewer per day, setting the detection range to the maximum provides a very comfortable user experience.
・Two CR123A batteries (1800mAh × 2 = 3600mAh) provide enough capacity for approximately 3,650 uses of face recognition and palm vein authentication. When the purple LED lights up, it indicates a low voltage of 4.5V, and both face and palm vein authentication will stop functioning.
・Even if the radar detection range is set to the minimum, pressing the "Unlock Button/Side Button" while locked will immediately activate face or palm vein recognition. This allows for an excellent balance between ultra-low power consumption and superior user experience.
・Regardless of the detection range, the radar itself is highly energy-efficient (30µA). In contrast, face and palm vein recognition consume a large amount of power (1,000,000µA).
